E410-15 Stainless Steel Electrode
Basic type stainless steel electrode with high recovery, which is used for welding of approx. 13% Cr containing stainless and heat resistant chromium steels or cast steels. Deposits martensitic stainless-steel weld metal.
Also suitable for corrosion and abrasion resistant surfacing of contact surfaces of gas, water and steam fan, fan blades and fittings subjected to operating temperatures up to 450°C. Weld metal is non-scaling up to 850°C. Use with DCEP. Depending on type of base metal and wall thickness, preheating and interpass temperatures from 100 to 400°C and tempering at 650 to 750°C are advisable.
Key Specifications/Special Features:
- Stainless steel MIG welding alloy
- Versatile electrode designed to weld several types of austenitic steels
- Smooth bead appearance
- Stainless steel TIG welding alloy
- Welding position:
- All welding positions
- Typical applications:
- Low carbon (Cr19Ni10)
- Synthetic fiber, chemical fertilizers
- Petroleum equipment
- Heat-resistant stainless-steel structure
Notes:
- Please bake E410-15 stainless steel electrode for 1 hour at 250°C before welding
- Before welding electrode should be preheated to 250 to 350°C
- Sizes (D): 2.6, 3.2, 4.0 and 5.0mm
- Supply capacity: 1,000T/month
- Price terms: FOB $900-1500/T
- Packaging: 5kg/box, 4 boxes/carton and 20kg/carton
- Payment terms: T/T 30% deposit after order confirmed and 70% balance against copy of B/L
- Main Export Markets

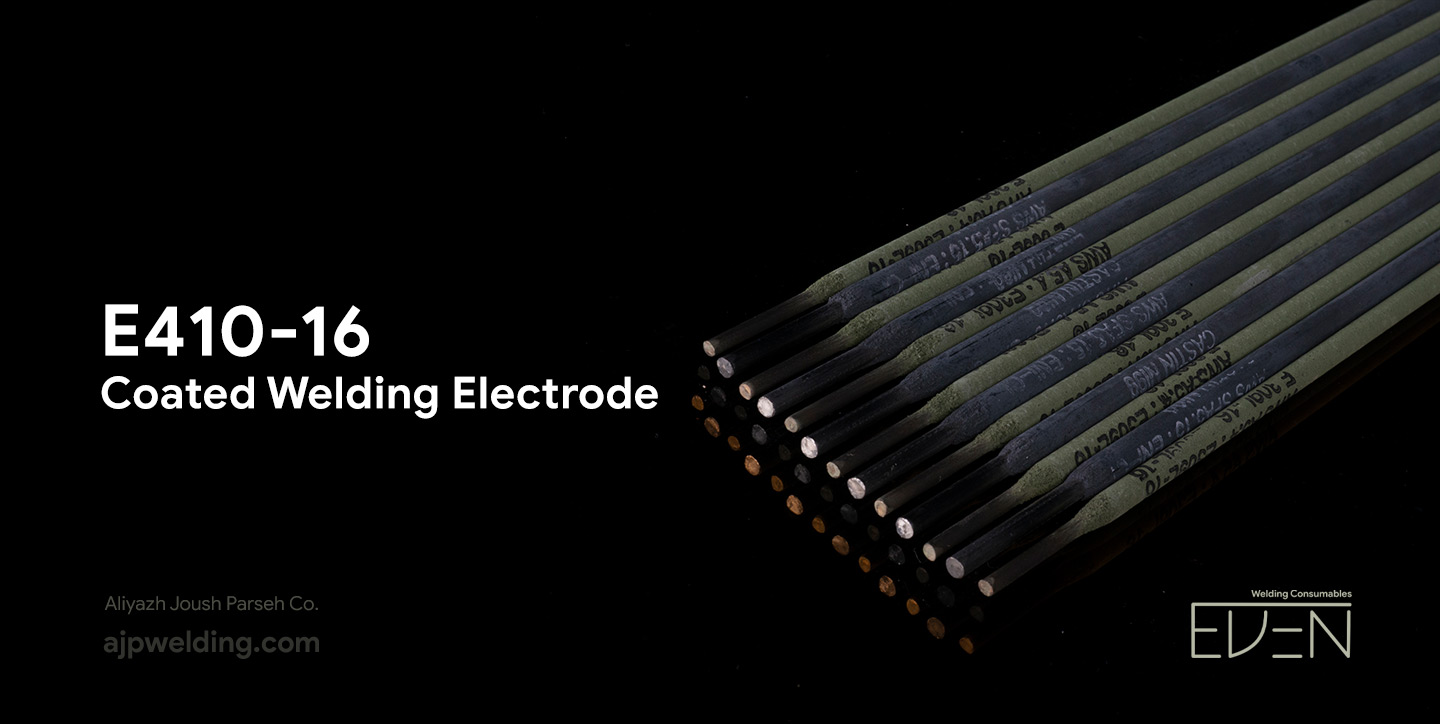

E410-16 Stainless Steel Electrode
EDEN E410-16 is designed to weld stainless steels of similar chemical composition as well as to overlay carbon steels to impart corrosion, erosion, and abrasion resistance. This air-hardening type material calls for a preheat and interpass temperature of not less than 400⁰F during welding.
Applications
EDEN E410-16 electrodes are recommended for welding type 410 straight chromium steel. This alloy is used extensively for corrosion and oxidation resistance at elevated temperatures up to 1500ºF. Unlike the chromium-nickel stainless steels, this type is not subject to loss of corrosion resistance due to carbide precipitation.
Welding of 13%Cr steel such as AlSl410, SUS420J1, SUS420J2. build-up welding of water runner where cavitation or erosion resistability is required.
DESCRIPTION:
EDEN 410 is a lime-titania type electrode of good usability in all position welding. Oxidation and corrosion resistibilities of weld metal are good. It is used for surfacing of the part where corrosion resistibility is required in chemical and petroleum industry.
NOTES ON USAGE:
- Preheat at 200 – 400°C as weld metal has self-hardeing properties.
- Postheat at 700 – 800°C in order to improve the structure and to stress relieve after welding.
